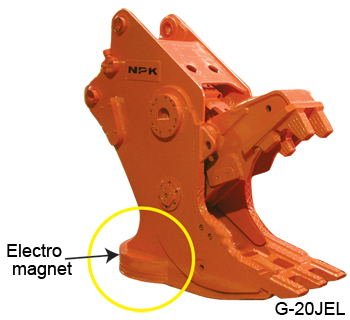

Electro-magnet type
No generator is required
(Electric power is supplied from
the excavator's battery)
 |
Equipped with NPK's exclusive pressure Intensifier System, providing maximum crushing force and fast cycle time. |
|
The adsorption power of the electro-magent is 1.5 times more powerful than the permanent magnet. |
|
Changeable teeth type. |
Crushing force at tip |
Max./Min. Opening |
Preset pressure of built-in
relief valve |
Oil flow |
Mass |
Magnet size dia. |
Recommended excavator mass |
|
kN |
mm |
MPa |
L/min |
kg |
mm |
ton |
|
| G-15JEL | 690 |
775/0 |
28 |
80～150 |
1480 |
600 |
12～16 |
| G-20JEL | 670 |
800/0 |
26 |
100～200 |
1990 |
600 |
19～21 |
| G-30JEL | 1160 |
1000/0 |
28 |
100～250 |
3435 |
700 |
29～38 |
Specifications subject to change without notice.
