Secondary Crushers

●Secondary Crushers (G Series)

●Permanent-magnet type (G Series)

●Electro-magnet type (G Series)

Permanent Magnet Type



No external power supply or generator required



Equipped with NPK's exclusive pressure Intensifier System, providing maximum crushing force and fast cycle time.

Magnet on/off achieved by the opening and closing of the jaw.
(Magnet can be set to be always off)

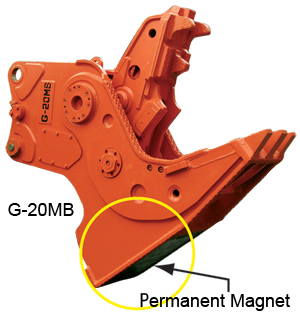

G-20MB photo

Crushing force at tip
Max./Min.
Opening
Preset pressure of built-in relief valve
Oil flow
Mass
Magnet size
(long side x short side)
Recommended excavator mass
kN
mm
MPa
L/min
kg
mm
ton
G-20MB
651
840/0
26
100~200
2150
458x310
19~21

Specifications subject to change without notice.
