Secondary Crushers



●Secondary Crushers (G Series)

●Permanent-magnet type (G Series)

●Electro-magnet type (G Series)


G Series



Permits faster secondary demolition and concrete recycling
Easier compaction of rebars and material handling

Equipped with NPK's exclusive pressure Intensifier System, providing maximum crushing force and fast cycle time.

Light weight and quick action

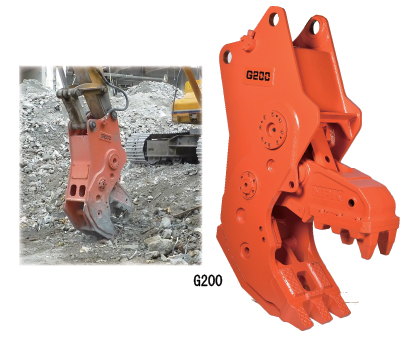

G series photo

Specifications

Crushing force at tip
Max.Min.
Opening
Preset pressure of built-in relief valve
Oil flow
Mass
Recommended excavator mass
kN
mm
MPa
L/min
kg
ton
G70
410
600/0
26
50~80
690
6~9
G120
690
775/0
28
80~150
1165
10~16
G175
696
822/0
26
100~200
1740
19~21
G200
815
860/0
26
100~200
2010
19~21
G-28J
1170
1000/0
28
100~250
2980
25~38
G-40
1240
1130/0
30
175~275
3815
39~48

"G200" and "G-28J" are teeth-exchange type.

Specifications subject to change without notice.
