This Vibrator is mounted on a hopper, tank, chute, etc. in a strage, conveying, drying crushing, or dust collecting system and gives vibrations to power adhering to them to shake it down, thereby preventing them from clogging.
| ■Air Cushion type | ||
 |
 |
 |
NLV-1518AL,
NLV-2430BL |

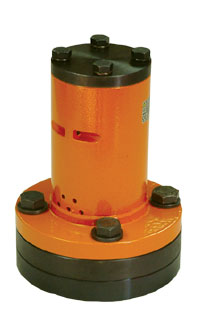

NLV-4856AL, NLV-55 |
NLV-75A |
| ■Impact Type | |
 |
 |
NLV-1518A,
NLV-2430B |
NLV-4856A |
| ■Rotary type | |
 |
 |

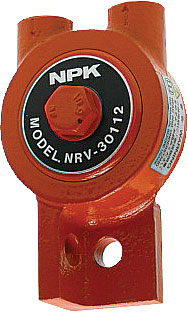

NRV-30112 |
NRV-5223 |
【Specification】 |
||||||||
＊Specificatioins are subject to change
without notice. |
| Model | code | Vibration per minute | Height | Mass | Bolt size | Bolt pitch | Air inlet thread | Hose size | Average air consumption |
| min-1 | mm | kg | mm | mm | Rc | mm | m3/min | ||
| NLV-1518AL | 30054 | 3,650 | 110 | 1.6 | 8 | □25 | 1/8 | 6.3 | 0.16 |
| NLV-2430BL | 30058 | 3,500 | 130 | 2.8 | 8 | □35 | 1/8 | 6.3 | 0.24 |
| NLV-4856AL | 30059 | 2,050 | 220 | 18.6 | 16 | □96 | 3/8 | 9.5 | 0.66 |
| NLV-1518A | 30053 | 4,500 | 110 | 1.6 | 8 | □25 | 1/8 | 6.3 | 0.06 |
| NLV-2430B | 30057 | 3,500 | 130 | 2.8 | 8 | □35 | 1/8 | 6.3 | 0.08 |
| NLV-4856A | 30061 | 2,100 | 220 | 18.7 | 16 | □96 | 3/8 | 9.5 | 0.39 |
| NLV-55 | 30064 | 2,450 | 196 | 10.3 | 16 | □72 | 3/8 | 9.5 | 0.51 |
| NLV-75A | 30065 | 2,050 | 276 | 32.5 | 22 | □105 | 1/2 | 12.7 | 0.63 |
| NRV-5223 | 30066 | 9,400 | 111 | 2.5 | 12 | - | 1/4 | 6.3 | 0.5 |
| NRV-30112 | 30169 | 18,000 | 83 | 0.4 | 8 | 130 | 1/8 | 6.3 | 0.15 |
