Pneumatic Tools catalogue is available in PDF.
These direct-drive grinders provide strong grinding power.
| ■Lever type | |
| ●180mm(7")Built-in governor | ●230mm(9")Built-in governor |
 |
 |
NVG-180SL |

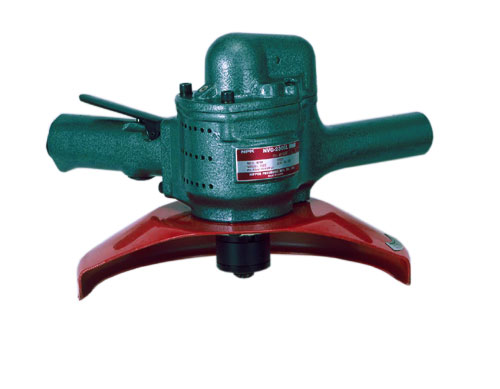

NVG-230SL |
| ■Safety Lever type | |
| ●180mm(7")Built-in governor | ●230mm(9")Built-in governor |
 |
 |
NVG-180SLW |
NVG-230SLW |
【Specification】 |
||||||||
＊Specificatioins are subject to change
without notice. |
| Model | code | Capacity(Wheel size) | Spindle thread | Max. Free speed | Overall length | Mass | Air inlet thread | Hose size | Average air consumption |
| mm | in | min-1 | mm | kg | Rc | mm | m3/min | ||
| NVG-180SL | 10119 | 180 X 6 X 22 | 5/8"-11UNC | 7,100 | 186 | 3.8 | 3/8 | 12.7 | 1.1 |
| NVG-230SL | 10122 | 230 X 6 X 22 | 5/8"-11UNC | 5,500 | 184 | 4.2 | 3/8 | 12.7 | 1.1 |
| NVG-180SLW | 10120 | 180 X 6 X 22 | 5/8"-11UNC | 7,100 | 186 | 3.8 | 3/8 | 12.7 | 1.1 |
| NVG-230SLW | 10123 | 230 X 6 X 22 | 5/8"-11UNC | 5,500 | 184 | 4.2 | 3/8 | 12.7 | 1.1 |
| NVG-230HLW | 10101 | 230 X 6 X 22 | 5/8"-11UNC | 5,500 | 188 | 4.2 | 3/8 | 12.7 | 1.1 |
