One Punch Hammers

The NPK One-Punch Hammer is a unique device for removing effiently adhesive powder which is in the shape of bridges and rat holes adhereed to the inside of strage tanks, hoppers and chutes by making use of strong piston impact operated by compressed air. Impact energy can be optionally selected by adjusting compressed air pressure.

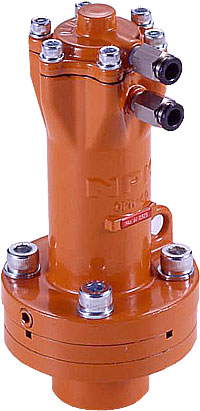

OPH-40 photo

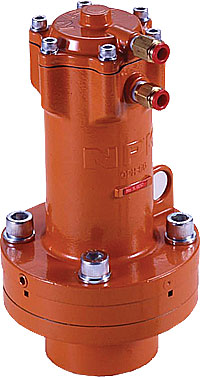

OPH-60 photo
OPH-40
OPH-60



【Specification】

*Specificatioins are subject to change without notice.
*Recommended air pressure 0.6MPa(6kgf/cm2, 85psi)

Model Impact eneergy Mas Average air consumption Recommend air pressure
J kgf・m kg Lit/time MPa
OPH-40 14.8~44.3 1.51~4.52 3.0 1.0 0.2~0.6
OPH-60 54.0~108.0 5.51~11.0 6.6 1.5 0.3~0.6
