Pneumatic Tools catalogue is available in PDF.
These are also scalers for removing scale and rust of ships or concrete dross in mixer agitators.
 |
 |
 |
NNK-250 |

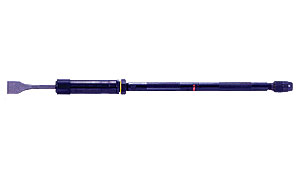

NNK-500 |

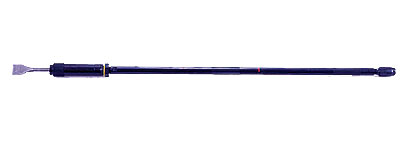

NNK-1000 |
【Specification】 |
||||||||
＊Specificatioins are subject to change
without notice. |
| Model | Blow per minute | Piston diameter | Piston stroke | Overall length | Mass | Air inlet thread | Hose size | Average air consumption |
| min-1 | mm | mm | mm | kg | Rc | mm | m3/min | |
| NNK-250 | 4,000 | 25.4 | 23 | 514 | 3.4 | 3/8 | 9.5 | 0.45 |
| NNK-500 | 4,000 | 25.4 | 23 | 744 | 4.2 | 3/8 | 9.5 | 0.45 |
| NNK-750 | 4,000 | 25.4 | 23 | 1,034 | 5.0 | 3/8 | 9.5 | 0.45 |
| NNK-1000 | 4,000 | 25.4 | 23 | 1,284 | 5.8 | 3/8 | 9.5 | 0.45 |
| NNK-1500 | 4,000 | 25.4 | 23 | 1,784 | 7.4 | 3/8 | 9.5 | 0.45 |
