The NPK Air Hoist is free from malfunction even if used in a location that is subject to high temperature and jumidity or exposed to heavy dust. The operating speed can be adjusted by manipulating the handle. Also, this hoist is internally equipped with a fine adjustment device.
| ●Pull Cable Type | |||
 |
|
 |
 |
RHL-250 |

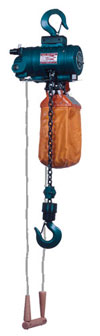

RHL-500 |

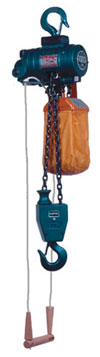

RHL-1000 |

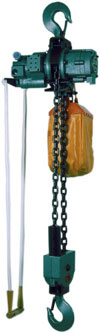

RHL-2800 |
| ●Pendant Control Type | |||
 |
|
 |
 |

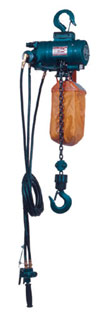

RHL-250P |
RHL-500P |
RHL-1000P |

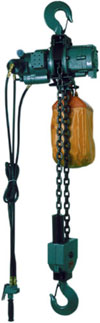

RHL-2800P |
【Specification】 |
||||||||
＊Specificatioins are subject to change
without notice. |
| Model | Chain | Capacity | Standard lift | Lifting speed max. load | Mass | Air inlet thread | Hose size | Average air consumption |
| kg | mm | m/min | kg | Rc | mm | m3/min | ||
| RHL-250 | Link | 250 | 3.0 | 27 | 16 | 3/8 | 12.7 | 1.3 |
| RHL-500 | Link | 500 | 3.0 | 12.6 | 16 | 3/8 | 12.7 | 1.3 |
| RHL-1000 | Link | 1,000 | 3.0 | 5.7 | 22 | 3/8 | 12.7 | 1.3 |
| RHL-2800 | Link | 2,800 | 3.0 | 2.2 | 68.5 | G1 | 19 | 1.7 |
| RHL-250P | Link | 250 | 3.0 | 27 | 18 | 3/8 | 12.7 | 1.3 |
| RHL-500P | Link | 500 | 3.0 | 12.6 | 18 | 3/8 | 12.7 | 1.3 |
| RHL-1000P | Link | 1,000 | 3.0 | 5.7 | 23.5 | 3/8 | 12.7 | 1.3 |
| RHL-2800P | Link | 2,800 | 3.0 | 2.2 | 71.5 | G1 | 19 | 1.7 |
