The compact designed drills assure best possible drilling performance.
| ●Non Reversible Type (*Drill chuck is an option, sold separately.) | |||
 |
 |
 |
 |
NRD-6SA (Taper type) NRD-6SA(T) (Thread type) |
NRD-6PB (Taper type) NRD-6PB(T) (Thread type) |

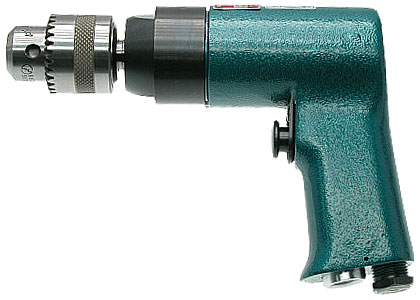

NRD-10P (Taper type) NRD-10P(T) (Thread type) |
NRD-12PA (Taper type) NRD-12PA(T) (Thread type) |
| ●Reversible type | |
 |
 |

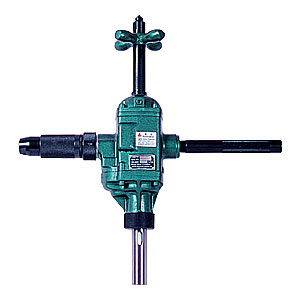

NRD-14R, 16R, 19R, 22R (Grip type) NRD-14RLW, 16RLW, 19RLW, 22RLW (Safety Lever type) |

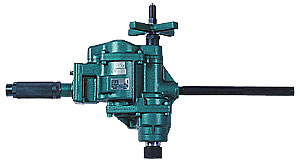

NRD-23R, 25R, 28R, 32LR (Grip Type) NRD-23RLW, 25RLW, 28RLW, 32LRLW (Safety Lever Type) |
【Specification】 |
||||||||
＊Specificatioins are subject to change
without notice. |
| Model | Drilling capacity | Jacobs chuk | Free speed | Overall length | Mass | Spindle offset | Feed length | Air inlet thread | Hose size | Average air consumption |
| mm | No. | min-1 | mm | kg | mm | mm | Rc | mm | m3/min | |
| NRD-6SA | 6.5 | 1 | 2,800 | 166 | 0.8 | - | - | 1/4 | 6.3 | 0.5 |
| NRD-6PB | 6.5 | 1 | 2,400 | 149 | 0.8 | - | - | 1/4 | 6.3 | 0.5 |
| NRD-10P | 10 | 2S | 2,000 | 156 | 1.1 | - | - | 1/4 | 9.5 | 0.55 |
| NRD-12PA | 13 | 6 | 1,500 | 187 | 2.6 | - | - | 1/4 | 9.5 | 0.65 |
| NRD-14R | 14 | MT1 | 1,100 | 436 | 5.3 | 39 | 60 | 3/8 | 12.7 | 1.1 |
| NRD-16R | 16 | MT2 | 900 | 451 | 5.5 | 39 | 60 | 3/8 | 12.7 | 1.1 |
| NRD-19R | 19 | MT2 | 750 | 451 | 5.5 | 39 | 60 | 3/8 | 12.7 | 1.1 |
| NRD-22R | 22 | MT2 | 600 | 451 | 5.5 | 39 | 60 | 3/8 | 12.7 | 1.1 |
| NRD-23R | 23 | MT2 | 500 | 355 | 10.5 | 41 | 100 | 1/2 | 12.7 | 1.4 |
| NRD-25R | 25 | MT3 | 400 | 355 | 10.3 | 41 | 100 | 1/2 | 12.7 | 1.4 |
| NRD-28R | 28 | MT3 | 350 | 355 | 10.3 | 41 | 100 | 1/2 | 12.7 | 1.4 |
| NRD-32LR | 32 | MT3 | 270 | 355 | 10.3 | 41 | 100 | 1/2 | 12.7 | 1.4 |
