Pneumatic Tools catalogue is available in PDF.

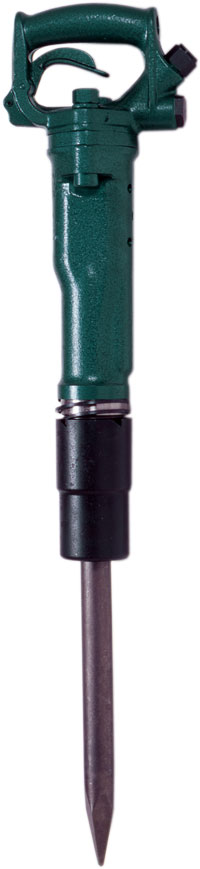

The tool is light in weight and easy to operate for excavation and demolition.
 |
DIG-9 |
【Specification】 |
||||||||
＊Specificatioins are subject to change
without notice. |
| Model | Blow per minute |
Piston diameter |
Piston stroke |
Overall length |
Mass |
Air inlet thread |
Hose size |
Average air consumption |
| min-1 | mm | mm | mm | kg | Rc | mm | m3/min | |
| DIG-9 | 1,500 | 42.8 | 63.5 | 478 | 8.8 | 3/8 | 12.7 | 1.1 |
