Pneumatic Tools catalogue is available in PDF.
A wide selection of angle grinders offer you a greater choice for your particular work.
Safety Grip Type |
|||
| ●50mm(2")Non governor | |||
 |
|||
NGE-050 |
|||
Safety Grip Type |
|||
| ●100mm(4")Built-in governor | |||
 |
|
 |
 |
NGS-100 |
NAG-400A-EX |
NGP-100 |
NAG-1F-04 |
Safety Grip Type |
|||
| ●125mm(5") Non governor | ●150mm(6")Built-in governor | ||
 |
 |
 |
 |
NGP-125 |
NAG-1F-05 |
NAG-6XA *NAG-6XALW with a safety lever is also available |
NAG-60 |
Safety Grip Type |
|||
| ●180mm(7") Built-in governor | |||
 |
 |
 |
|
NAG-70A |
NAG-70S |
NAG-7X |
|
Safety Grip Type |
|||
| ●230mm(9") Built-in governor | |||
 |
|||
NAG-230E |
|||
Safety Lever Type |
|||
| ●50mm(2")Non governor | |||
 |
|||
NGE-050LW |
|||
Safety Lever type |
|||
| ●100mm(4") Non governor |
●125mm(5") Non governor |
●180mm(7") Built-in governor |
●230mm(9") Built-in governor |
 |
 |
 |
 |
NAG-1FLW-04 |
NAG-1FLW-05 |

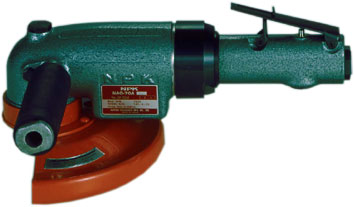

NAG-70ALW |
NAG-230ELW (Long spindle type) |
Safety Lever type |
|||
| ●100mm(4") Non governer |
●125mm(5") Non governer |
||
 |
 |
||
NAG-1FLW-04-CE |
NAG-1FLW-05-CE |
||
Safety Lever type ･ Light/Left replaceable Handle |
|||
| ●100mm(4") Rear exhaust, Spindle lock system |
●125mm(5") Rear exhaust, Spindle lock system |
||
 |
 |
||
NAG-11A-04 |
NAG-11A-05 |
||
【Specification】 |
||||||||
＊Specificatioins are subject to change
without notice. |
| Model | Capacity (Wheel Size) |
Spindle thread |
Max. Free speed |
Over-all Length | Height | Mass | Max. output | Air Inlet Thread | Hose size | Average Air Con-sumption |
| mm | in | min-1 | mm | mm | kg | kw | Rc | mm | m3/min | |
| NGE-50 | 50x4x9.5 | - | 15,000 | 155 | 62.4 | 0.7 | 0.41 | 1/4 | 9.5 | 0.48 |
| NGS-100 | 100x6x15 | - | 13,600 | 192 | 85 | 1 | 0.7 | 1/4 | 9.5 | 0.5 |
| NAG-400A-EX | 100x6x15.9 | - | 13,600 | 216 | 86 | 1.7 | 0.85 | 1/4 | 9.5 | 0.65 |
| NGP-100 | 100x6x15 | 13,600 | 225 | 97 | 1.8 | 1.2 | 3/8 | 9.5 | 1 | |
| NAG-1F-04 | 100x6x15.9 | - | 12,700 | 190 | 83 | 1.5 | 0.87 | 1/4 | 9.5 | 0.68 |
| NGP-125 | 125x6x22 | 10,900 | 225 | 105 | 1.9 | 1.2 | 3/8 | 9.5 | 1 | |
| NAG-1F-05 | 125x6x22.2 | - | 12,700 | 187 | 77 | 1.6 | 0.87 | 1/4 | 9.5 | 0.68 |
| NAG-60 | 150x6x22 | 5/8" -11UNC |
9,000 | 238 | 112 | 2.8 | 1.24 | 3/8 | 12.7 | 1.1 |
| NAG-6XA | 150x6x22 | 5/8" -11UNC |
9,000 | 229 | 110 | 2.5 | 0.65 | 1/4 | 12.7 | 0.65 |
| NAG-70A | 180x6x22 | 5/8"-112UNC | 7,600 | 260 | 106 | 3.1 | 0.96 | 3/8 | 12.7 | 1.2 |
| NAG-70S | 180x6x22 | 5/8"-11UNC | 7,600 | 237 | 109 | 2.8 | 0.88 | 3/8 | 12.7 | 1.1 |
| NAG-7X | 180x6x22 | 7,600 | 230 | 110 | 2.5 | 1/4 | 12.7 | 0.65 | ||
| NAG-230E | 230x6x22 | 5/8"-11UNC | 5,500 | 275 | 135 | 4.4 | 0.96 | 3/8 | 12.7 | 1.2 |
| NGE-50LW | 50x4x9.6 | - | 15,000 | 155 | 62.4 | 0.7 | 0.41 | 1/4 | 9.5 | 0.48 |
| NAG-1FLW-04 | 100x6x15.9 | - | 12,700 | 232 | 77 | 1.5 | 0.87 | 1/4 | 9.5 | 0.68 |
| NAG-1FLW-05 | 125x6x22 | - | 12,700 | 232 | 77 | 1.5 | 0.87 | 1/4 | 9.5 | 0.68 |
| NAG-70ALW | 1802x6x22.2 | - | 7,600 | 230 | 110 | 2.5 | 1.32 | 3/8 | 12.7 | 1.2 |
| NAG-230ELW | 230x6x22 | 5/8" -11UNC |
5,500 | 321 | 138 | 4.3 | 1.32 | 3/8 | 12.7 | 1.2 |
| NAG-1FLW-04-CE | 100x6x15.9 | - | 12,700 | 232 | 79 | 1.5 | 0.87 | 1/4 | 9.5 | 0.68 |
| NAG-1FLW-05-CE | 125x6x22 | - | 12,700 | 232 | 83 | 1.6 | 0.87 | 1/4 | 9.5 | 0.68 |
| NAG-11A-04 | 100x6x15.9 | - | 12000 | 248 | 94 | 2.2 | 0.88 | 3/8 | 9.5 | 0.8 |
| NAG-11A-05 | 125x6x22 | M14x2.0 | 12000 | 248 | 98 | 2.3 | 0.88 | 3/8 | 9.5 | 0.8 |
| NAG-6XALW | 150x6x22 | 5/8"-11UNC | 9,000 | 250 | 110 | 2.5 | 0.81 | 1/4 | 12.7 | 0.65 |
