●K-series (Heavy-duty type)
Heavy-duty type
A large-scale object us easily cut
 |
Equipped with NPK's exclusive pressure Intensifier System in cylinder |
|
360°rotation system for easy positionin |
|
Greatest cutting power : one-edged blade drive type with one cylinder |
|
Higher-grade cutting capability with direct installation into an arm of hydraulic excavator |
Specifications

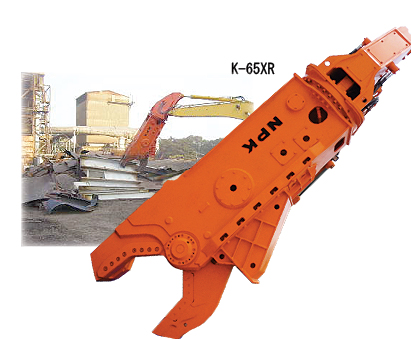

K65XR |
||
cutting force |
kN |
3300 |
max.
opening |
mm |
830 |
preset pressure of built-in relief valve |
MPa |
30 |
excavator's relief setting pressure |
MPa |
32 |
oil flow |
L/min |
150～500 |
mass |
kg |
special order |
recommended excavator's mass |
ton |
29～48 |
Specifications subject to change without notice.
