●M-series

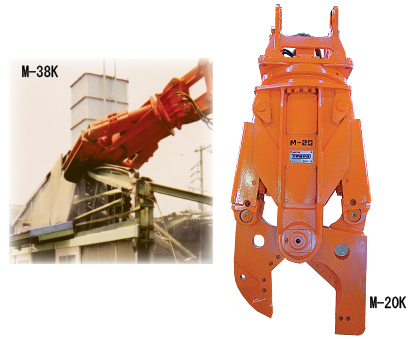

M Series
The shear is completely
functional
throughout
the entire 360°
continuous power rotation
Specifications
M-20K |
M-31K
|
M-38K |
||
cutting force |
kN |
810 |
1100 |
1510 |
max.
opening |
mm |
535 |
580 |
765 |
preset pressure of built-in relief valve |
MPa |
25 |
26 |
25 |
excavator's relief setting pressure |
MPa |
28 |
28 |
28 |
oil flow |
L/min |
100～250 |
150～350 |
175～400 |
mass |
kg |
2090 |
3100 |
4335 |
recommended excavator's mass |
ton |
19～21 |
29～38 |
39～48 |
Specifications subject to change without notice.
