Medium to Heavy-duty class (GH Series)
The most POWERFUL & RELIABLE Line up
 |
Enclosed Brackets for reduced noise & complete protection of the hammer body. |
|
|
|
|
|
Anti-Blank Hammering System : Hammer will fire only when chisel is loaded into material. Increased durability for more safe & efficient operation.. |
|

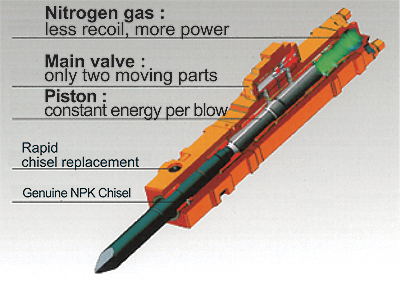

Unique Gas Charged Piston Action : the Power of NPK. |
|
Rapid and Easy Chisel Replacement : reduces downtime to a minimum. |
|
Replaceable tool bushings: Enhances the life of the hammer and prevents wear to main chisel body. |
|
Replaceable cylinder bushings : easy to maintain and prevents wear of the hammer body. |
All Models easily adaptable for
Specifications
Excavator weight |
Operating weight |
Oil flow |
Blow Frequency |
Excavator's relief pressure setting |
Chisel diameter |
|
ton |
kg |
L/Min |
b.p.m |
MPa |
mm |
|
| GH(S)-6 | 10～16 |
950 |
90～150 |
450～800 |
25 |
106 |
| GH(S)-9 | 19～21 |
1650 |
150～200 |
500～650 |
25 |
126 |
| GH(S)-10 | 19～21 |
1810 |
165～210 |
430～550 |
25 |
136 |
| GH(S)-12 | 22～28 |
2430 |
170～220 |
400～520 |
25 |
146 |
| GH(S)-15 | 29～38 |
2895 |
200～250 |
350～450 |
25 |
156 |
| GH(S)-18 | 39～48 |
3430 |
220～290 |
300～400 |
25 |
165 |
| GH(S)-23 | 45～65 |
4525 |
250～320 |
300～400 |
25 |
174 |
| GH(S)-30 | 60～80 |
5470 |
280～350 |
310～390 |
25 |
184 |
| GH-40 | 90～110 |
7750 |
300～400 |
240～330 |
25 |
204 |
| GH-50 | 120 |
11300 |
350～450 |
210～280 |
25 |
214 |
Specifications subject to change without notice.
Weight : Main body with standard bracket and point chisel.
(S) : Anti-blank hammering system specifications.
