Hydraulic Hammers - Light and Medium class (GH Series)

●Light and Medium class (PH Series)

●Medium to Heavy-duty class (GH Series)

Light and Medium class (PH Series)

Significant innovations
in the growing mini & compact equipment market

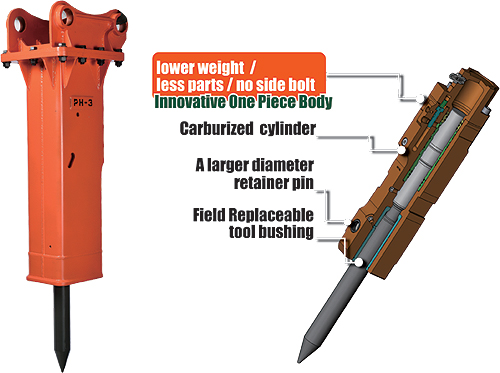

 PH Series photo

Longer Service life : High durability

Save time : Reducing assembly /disassembly time

Easy Maintenance : Reduced operation cost

Powerful Performance : Reduced weight, high production

Easy to switch anti-blank hammering system

Specifications

Excavator weight
Operating weight
Oil flow
Blow Frequency
Excavator's
relief pressure setting
Chisel diameter
ton
kg
L/Min
b.p.m
MPa
mm
PH-06
1.0~1.8
75
15~35
480~1200
20
42
PH-07
1.5~2.7
95
15~45
450~1300
20
47
PH-1
2.0~3.5
160
25~55
550~1100
20
57
PH-2
3.0~5.5
205
25~60
550~1200
23
66
PH-3
4.0~8.0
340
45~100
550~1150
23
76
PH-4
6.0~9.0
465
50~120
400~1000
23
86

PH-06 and PH-07 specificationos are for Horizontal bracket type only.

Horizontal bracket can be also available (PH-06 to PH-4).

Specifications subject to change without notice.
