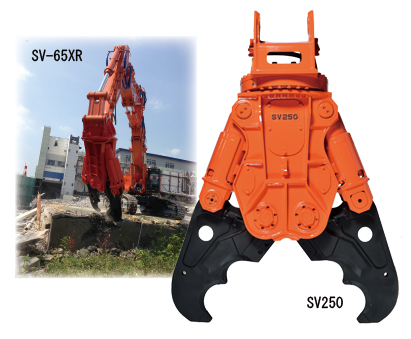

●Primary Crushers(SV Series)
SV Series
Diverse lineup of products
for use on mini to large excavators
 |
Much more powerful crush power adapted two cylinder system |
|
Remarkably improved mobility with superior right-left balance |
|
Work safely and speedy by quick movement |
|
Less stretchability for operating arm opening and closing |
Specifications
(R)means Hydraulic rotation type, SV-65XR is hydraulic rotation
type
SV-7X(R) |
SV-140(R)
|
SV-18X |
||
crushing force at tip |
kN |
470 |
700 |
700 |
max./min.
opening |
mm |
700/0 |
970/0 |
950/0 |
preset pressure of built-in relief valve |
MPa |
- |
28 |
28 |
excavator's relief setting pressure |
MPa |
28 |
30 |
30 |
oil flow |
L/min |
50～130 |
80～230 |
80～230 |
mass |
kg |
745(745) |
1450(1450) |
1790 |
recommended excavator's mass |
ton |
6～9 |
10～16 |
19～21 |
SV250(R) |
SV380(R)
|
SV400(R) |
||
crushing force at tip |
kN |
1150 |
1400 |
1500 |
max./min.
opening |
mm |
1200/0 |
1400/0 |
1500/0 |
preset pressure of built-in relief valve |
MPa |
28 |
28 |
28 |
excavator's relief setting pressure |
MPa |
30 |
30 |
30 |
oil flow |
L/min |
100～400 |
150～500 |
150～500 |
mass |
kg |
2450(2450) |
3740(3800) |
4100(4090) |
recommended excavator's mass |
ton |
19～28 |
29～38 |
29～38 |
SV500(R) |
SV-65XR
|
SV-100XR |
||
crushing force at tip |
kN |
1780 |
2140 |
2660 |
max./min.
opening |
mm |
1750/0 |
2000/0 |
2200/0 |
preset pressure of built-in relief valve |
MPa |
28 |
26 |
28 |
excavator's relief setting pressure |
MPa |
30 |
28 |
30 |
oil flow |
L/min |
175～600 |
200～700 |
200～800 |
mass |
kg |
4960(4930) |
special order |
special order |
recommended excavator's mass |
ton |
39～48 |
60～70 |
80～100 |
Specifications subject to change without notice.
