●Primary Crushers(X Series)
X Series
Diverse lineup of products
for use on mini to large excavators
 |

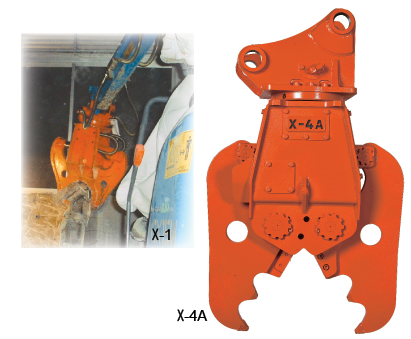

Mini crusher that can crush and cut |
|
Equipped with NPK's exclusive pressure Intensifier System, providing maximum crushing force and fast cycle time. |
Specifications
X-1 |
X-3A
|
X-4A |
||
crushing force at tip |
kN |
240 |
320 |
340 |
max./min.
opening |
mm |
260/0 |
350/0 |
440/0 |
preset pressure of built-in relief valve |
MPa |
21 |
21 |
21 |
excavator's relief setting pressure |
MPa |
2218 |
23 |
23 |
oil flow |
L/min |
20～30 |
30～60 |
30～70 |
mass |
kg |
120 |
290 |
370 |
recommended excavator's mass |
ton |
1.3～2.0 |
2.5～4.0 |
4.0～5.5 |
X-7A |
||
cutting force |
kN |
490 |
max./min.
opening |
mm |
550/0 |
preset pressure of built-in relief valve |
MPa |
25 |
excavator's relief setting pressure |
MPa |
28 |
oil flow |
L/min |
50～130 |
mass |
kg |
660 |
recommended excavator's mass |
ton |
6.0～9.0 |
Specifications subject to change without notice.
