Collision Plate Type Supersonic Jet Mill CPY TOP
 |
Specifications for CPY with classifier DSF
Model |
Comp.
Air consumption |
Compressor power |
Blower power |
Comp.air supply port diameter |
Weight |

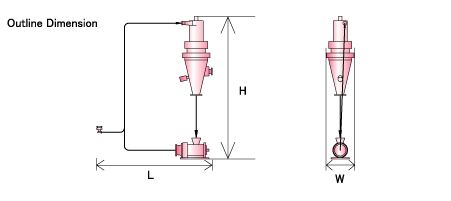

Outline Dimension |
||
L |
W |
H |
||||||
Nm3/min |
kW |
kW |
- |
Kg |
mm |
mm |
mm |
|
CPY-2 +DSF-2 |
2 |
15 |
3.7 |
G 3/4 |
97 |
750 |
430 |
1445 |
CPY-5 +DSF-5 |
5 |
37 |
18.5 |
G1 |
171 |
920 |
525 |
1960 |
CPY-12 +DSF-10 |
12 |
75 |
30 |
JIS10K 50A Flange |
308 |
1060 |
700 |
2950 |
CPY-20 +DSF-20 |
20 |
125 |
55 |
JIS10K 80A Flange |
809 |
1290 |
950 |
3020 |
Specifications for CPY with classifier UFS
Model |
Comp.
air consumption |
Compressor power |
Blower power |
Comp.air supply port diameter |
Weight |
Outline dimension |
||
L |
W |
H |
||||||
Nm3/min |
kW |
kW |
- |
Kg |
mm |
mm |
mm |
|
CPY-2 +USF-2 |
2 |
15 |
7.5 |
G 3/4 |
139 |
850 |
550 |
1450 |
CPY-5 +USF-5 |
5 |
37 |
37 |
G1 |
223 |
1040 |
740 |
1750 |
CPY-12 +USF-10 |
12 |
75 |
55 |
JIS10K 50A |
259 |
1170 |
1450 |
2415 |
