Collision Plate Type Supersonic Jet Mill CPY TOP
Principle for CPY with classifier DSF
 |
 |
CPY Part
- Pulverization is performed through
the particles collide with the target plate in a air flow
of theoretically over Mach 2.
- Circulate the coarse particles to the pulverization zone again
|
DSF Part
- Disperses the particles by the vortex
flow in the upper dispersion zone.
- Evenly supplies the particles from
the ring shaped slit into the classification zone.
- The secondary air, provided from
the guide vane, forms a high speed vortex flow.
- High precision separation of the
coarse particles and the fine particles is enabled by
the vortex flow.
|
|
| |
Principle for CPY with classifier UFS
|
 |
CPY Part
- Pulverization is performed through
the particles collide with the target plate in a air flow
of theoretically over Mach 2.
- Circulate the coarse particles to the pulverization zone again
|

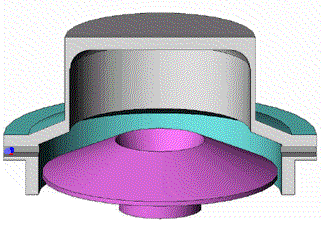

UFS Part
- Disperse and supply material powder
from the guide vane with a high speed air flow.
- The high speed vortex flow separates
the coarse particles in the 1st classification zone.
- The fine particles are separated
from the ultra fine particles in the 2nd classification
zone.
- Highly efficient classification
is enabled by repeated classification in the 1st classification
zone and the 2nd classification zone.
|
|
